28' Pro Series Goose Neck PMC PH-2 30KW Diesel Powered Spray Rig


Trailer Package:

  •  (1) Custom Built 28’ Goose Neck Cargo Trailer: Semi Screwless Exterior Dual 8,000-lb Dexter Torflex Axles w/ Electric Brakes (16,000 GVW), 12” OC Floor Supports, 8’ Wide x 7’6” Interior Height, LED Lights, 16” Heavy-Duty Steel Wheels, 16” Spare Tire, Rear Boggy Wheels, Heavy-Duty Electric/Hydraulic Trailer Jack, 1.75” Profoam Closed Cell  Insulation in Walls, Ceiling and Floor, 3/4” Cabinet Grade Plywood Walls, 3/8” AC Grade Plywood Ceiling Industrial Gray Wall and Ceiling Paint
  •  Your Choice of Color
  •  Your Choice of Barn or Ramp Door in Rear
  •  Aluminum Door Trim
  •  (1) 36” Side Door w/ Flush and Bar Lock and Easy Access Step Well
  •  Fully Adhered Rubber ATP Diamond Plated Floor
  •  E-Track Barrel Bracing System w/ Heavy-Duty Adjustable Ratchet Straps
  •  (1) 27” Husky Industrial Grade Tool Box/Work Bench w/ Bench Vise and Tool Package
  •  (1) 28” Husky industrial Grade Wall Cabinet
  •  (1) 5,000 BTU Infrared Electric Wall Heater
  •  (1) 12” x 12” Hose Hatch
  •  (1) Interior Partition Wall w/ Optional 2’0” Heavy-Duty Commercial Grade Steel Door
Equipment Package:
  •  (1) PMC PH-2 Horizontal Hydraulic/Electric Proportioner: 28- lbs/min Output, 2,000 psi Max Working Pressure, 240V
  •  3-Phase, 10,500-Watt Primary Heaters, 120V Hose Heater Transformer
  •  210’ Heated Spray Hose w/ Scuff Jacket and Temperature Control Wiring

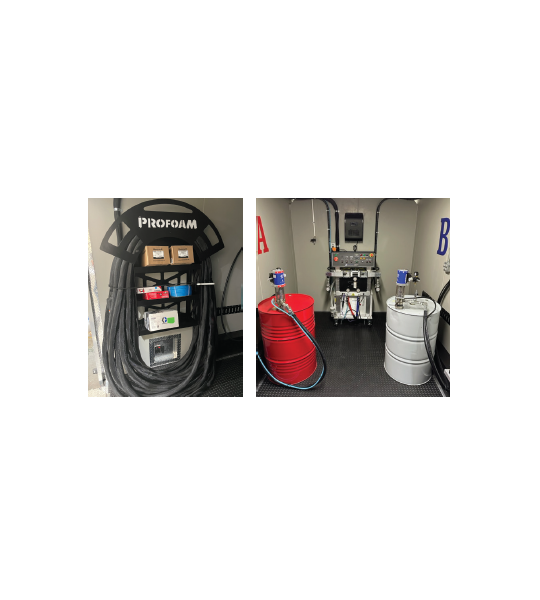

  •  (1) Custom Profoam Hose Rack System
  •  (2) Graco T3 Pneumatic 3:1 Material Transfer Pumps w/ 3/4” Moisture Lock Material Supply Hoses and 1/4” High Pressure Moisture Lock Material Recirculation Hoses
  •  (1) Wall Mount Pour Over and Bleed Off System
  •  (1) Carlisle ST1 Spray Gun and Tool Package
  •  (1) Profoam ST1 Spare Parts Kit
Air Compressor Package:
  •  (1) Rotary Screw Air Compressor, 5hp 3-Phase Electric Motor, 30 gallon Horizontal Air Storage Tank 16 CFM @ 125 psi, Continuous Run High Efficiency Compressor, Electronic Automatic Tank Drain, Vibration Pads
  •  (1) 20 CFM High Inlet Temperature Refrigerated Air Dryer
  •  Airnet Aluminum Air Line System
Electrical Package:
  •  (1) 30kW 3-Phase Industrial Diesel Generator w/ Digital Control Panel and Electric Start, Tier 4 Emission
  •  (1) 36 gallon Fuel Tank w/ Exterior Fuel Filler Supply
  •  Heavy-Duty Aluminum Intake and Exhaust Louvers
  •  Industrial Grade Electrical Wiring System
  •  (1) 200 AMP 3-Phase Electrical Panel w/ Miscellaneous Breakers
  •  Exterior 110V Shore Power Plugs for Trailer Lights
  •  Multiple 110V Convenience Receptacles Throughout
  •  (2) 4’ LED Ceiling Lights
Safety Package:
  •  (1) Allegro 9815-EF 1-Man Fresh Air Respirator System
  •  150’ 3/4” Air Hose
  •  (1) Allegro Full-Face Mask w/ Peel Off Lens Covers
  •  (2) North Full-Face Masks w/ Organic Vapor Cartridges w/Peel-Off Lens Covers
  •  (2) North Half-Masks w/ Organic Vapor Cartridges
  •  (1) Case of 2XL Spray Suits
  •  (12) Pairs of Spray Gloves
  •  (1) Box of Latex Gloves
  •  (1) Package of Head Socks
  •  (1) 15 Minute Wall Mount Eye Wash Station
  •  (1) Wall Mount First Aid Kit
  •  (1) 5-lb Fire Extinguisher
Upgrade Options:
  •  Delivery Available at $3.00 per Mile (1-way from Rutledge, GA)
  •  Rooftop AC Unit: $2,200
  •  Rooftop AC Unit w/ Heat Pump: $2,500
  •  Spare Carlisle ST1 Spray Gun: $3,345
  •  Additional Hose Length: $2,394 per 50’ Section
  •  Pneumatic 55 gallon Drum Mixer w/ Aluminum Stand: $1,175
  •  Turbocutz Closed & Open Cell Wall Scrafing Tool: $2,325
  •  Vortec Beast Vacuum System: $9,750 + shipping (shipping NOT included - billed separately)
  •  Drum Truck (55 gallon drums, 1000-lb Capacity): $575
  •  Heavy-Duty Aluminum Fold Out Walk Ramp: $610
  •  Upgrade to Single Phase System w/ 40kW Diesel Generator, 200 AMP Generator to Shore Power Transfer Switch and 150’ of #2/4 SO Cable: $4,800
  •  2’0” Interior Commercial Grade Steel Door: $900
Add Profoam Marketing Services Bundle: $ 2,000
  •  Rig Buy-Back Program
  •  15% off all PMC, Graco, & Carlisle Parts & Equipment
  •  Customized Business Website Template [domain & hosting fees ($79/month) not included]
  •  Business Facebook Page Creation and Set Up
  •  Customized Advertising Videos
  •  Business Logo Design
  •  Business Cards
  •  Profoam Product Brochures
  •  FREE Access to SprayFoamLeads.com Database and Lead Alert System
  •  Print Subscription to Spray Foam Magazine
  •  Access to Purchase One of Our Premium Domain Names for YOUR Business (ex. ArizonaSprayFoam.com)
Add Profoam Graphics Package: $ 4,250
Includes
  •  Design
  •  Printing
  •  Installation
Add PMC PX-7 Pour Gun w/ Spare Parts Kit and Geotech Starter Kit: $ 4,950
The PX-7 Gun is Ideal for Concrete Lifting Applications

Geotech Starter Kit includes:
  •  [1] Profoam Concrete Injecting Ports Starter Kit
  •  [1] PX-7 Spare Parts Kit
Quote Includes:
  •  All components necessary to install Profoam spray foam materials
  •  Free initial field training on your job-site by one of our certified technicians
  •  Free ongoing technical and sales support
Warranty: All components come w/ a one year manufacturer’s warranty unless otherwise stated or specified.
