Elite Series PMC PH-2, 23kW Diesel Powered Geotech Sprinter Van

Ideal for Specialized & High-Efficiency Work

The Elite Sprinter Van rig is perfect for:

•   Urban contractors and tight-access job sites
•   Service crews and repair work
•   Residential insulation projects
•   Contractors wanting a secondary or support rig
•   Businesses focused on efficiency and mobility

Check out all of the features of our Elite Series PMC PH-2, 23kW Diesel Powered Geotech Sprinter Van:

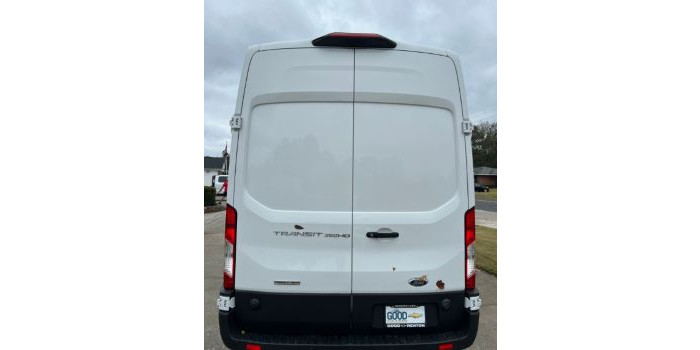

•  (1) Commercial Sprinter Van to be Furnished by Customer
•  Profoam Insulation on Walls and Ceiling Covered with AC Grade Plywood
•  E-Track Barrell Bracing System w/ (2) Heavy Duty Adjustable Ratchet Strap

•  (1) PMC PH-2 Horizontal/Electrical Proportioner: 28-lbs/min Output, 2,000 psi Max Working Pressure, 240V Single Phase w/ 7,500-Watt Primary Heaters, 90V Hose Heater Transformer
•  210’ Heated Spray Hose w/ Scuff Jacket and Temperature Control Wiring

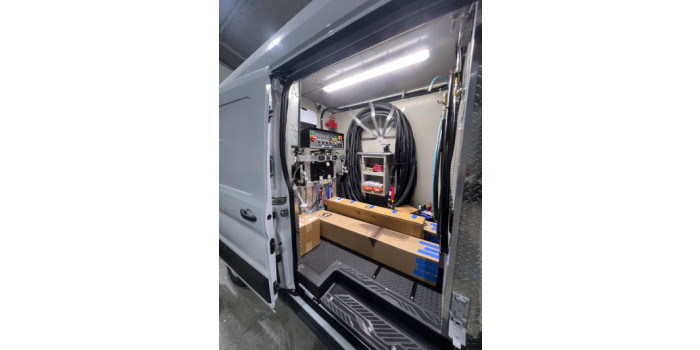

•  (1) Custom Profoam Hose Rack System
•  (2) Graco T4 Pneumatic 4:1 Material Transfer Pumps w/ 3/4” Moisture Lock Material Supply Hoses and
•  1/4” High Pressure Moisture Lock Material Recirculation Hoses
•  (1) Wall Mount Pour Over and Bleed Off System
•  (1) PMC PX-7 Mechanical Purge Pour Gun
•  (1) Profoam PX-7 Spare Parts Kit
•  (1) Geotech Starter Kit

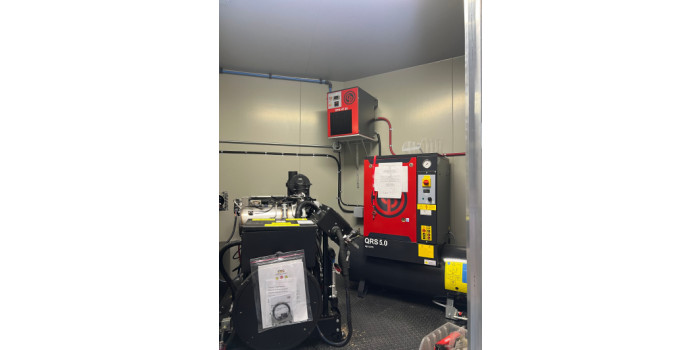

•  (1) 5 HP Industrial Air Compressor with 30 Gallon Tank, Three Phase Electric Motor, 17 CFM @ 150 PSI, 2 Cylinder 2 Stage Continuous Run High Efficiency Compressor
•  3/4” Heavy Duty Air Regulator
•  Electronic Automatic Tank Drain and Vibration Pads
•  (1) 25 CFM High Inlet Temperature Refrigerated Air Dryer
•  3/4” PEX Air Line System

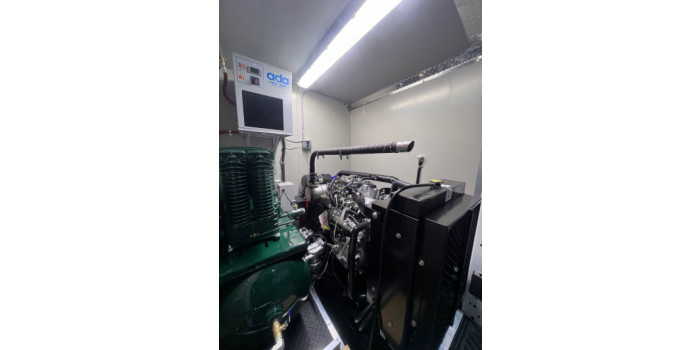

•  (1) 23kW Three Phase Industrial Diesel Generator w/ Digital Control Panel and Electric Start, Tier 4 Emission

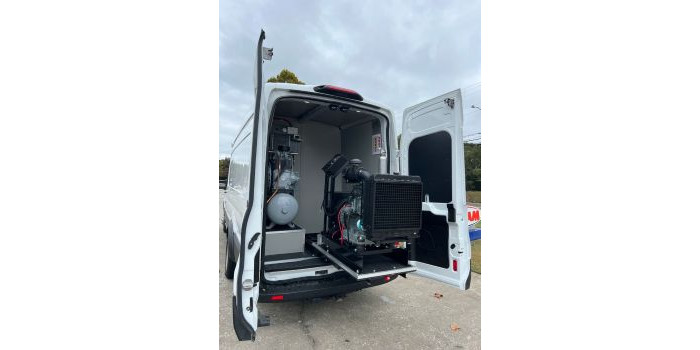

•  (1) 2,500 lb Capacity Generator Slide Out
•  (1) 17 Gallon Fuel Tank, Aluminum Intake and Exhaust Louvers
•  (1) 100 AMP Three Phase Sub Panel w/ Miscellaneous Breakers
•  (2) 4’ LED Ceiling Lights
•  All Wires Ran in Commercial Aluminum Armor flex Cable

Safety Package

•  (12) Safety Glasses
•  (12) Pairs of Coated Gloves
•  (1) 15-Minute Wall Mount Eye Wash Station
•  (1) Wall Mount First Aid Kit
•  (1) 5-lb Fire Extinguisher
