Elite Series PMC PH-2, 30kW Diesel Powered Box Truck Spray Rig

Ideal for High-Production Contractors

The Elite Box Truck rig is perfect for:

•  Established spray foam businesses
•  High-volume insulation and roofing contractors
•  Crews running daily, full-scale operations
•  Companies looking for a fully contained, professional setup

Check out all of the features of our Elite Series PMC PH-2, 30kW Diesel Powered Box Truck Spray Rig:

•  (1) Commercial Box Truck to be Furnished by Customer
•  1.75” Profoam Closed Cell Insulation in Walls, Ceiling and Floor
•  3/4” Cabinet Grade Plywood Walls
•  3/8” AC Grade Plywood Ceiling
•  Industrial Gray Wall and Ceiling Paint
•  Aluminum Door Trim
•  E-Track Barrel Bracing System w/ (2) Heavy-Duty Adjustable Ratchet Straps
•  (1) 27” Industrial Grade Tool Box/Work Bench w/ Bench Vise and Tool Package
•  (1) 28” Industrial Grade Wall Cabinet
•  (1) 5,000 BTU Infared Electric Wall Heater
•  (1) 12” x 12” Hose Hatch
•  (1) Interior Partition Wall w/ Optional 2’0” Heavy-Duty Steel Commercial Grade Interior Door

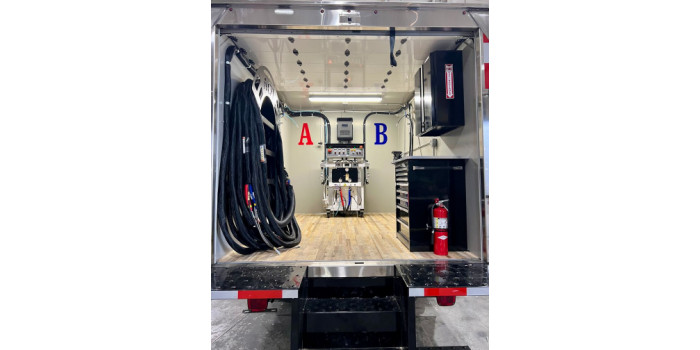

•  (1) PMC PH-2 Horizontal/Electrical Proportioner: 28-lbs/min Output, 2,000 psi Max Working Pressure, 240V
•  Three Phase w/ 10,500-Watt Primary Heaters, 120V Hose Heater Transformer
•  210’ Heated Spray Hose w/ Scuff Jacket and Temperature Control Wiring
•  (1) Custom Profoam Hose Rack System
•  (2) Graco T3 Pneumatic 3:1 Material Transfer Pumps w/ 3/4” Moisture Lock Material Supply Hoses and 1/4” High Pressure Moisture Lock Material Recirculation Hoses
•  (1) Wall Mount Pour Over and Bleed Off System
•  (1) Graco FX Spray Gun and Tool Package
•  (1) Profoam FX Spare Parts Kit

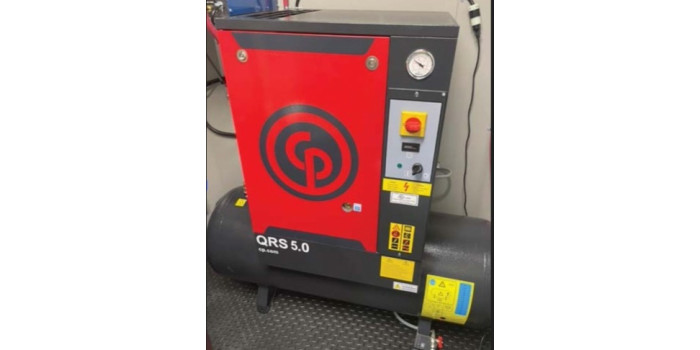

•  (1) Chicago Pneumatic Rotary Screw Air Compressor, 5hp Three Phase Electric Motor, 30 gallon Horizontal Air Storage Tank 16 CFM @ 125 psi, Continuous Run High Efficiency Compressor, Electronic Automatic Tank Drain
•  (1) Chicago Pneumatic 25 CFM High Inlet Temperature Refrigerated Air Dryer
•  3/4” PEX Air Line System

•  (1) 30kW Three Phase Industrial Diesel Generator w/Digital Control Panel and Electric Start, Tier 4 Emission
•  Heavy-Duty Aluminum Intake and Exhaust Louvers
•  Industrial Grade Electrical Wiring System

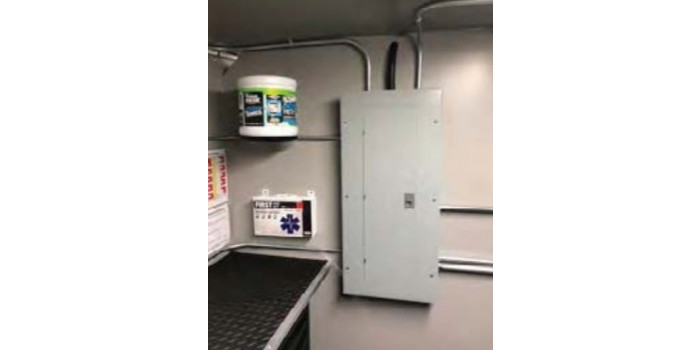

•  (1) 150 AMP Three Phase Electrical Panel w/ Miscellaneous Breakers
•  Exterior 110V Shore Power Plugs for Trailer Lights
•  Multiple 110V Convenience Receptacles
•  (2) 4’ LED Ceiling Lights

Safety Package

•  (1) Allegro 9815-EF 1-Man Fresh Air Respirator System
•  150’ 3/4” Air Hose
•  (1) Allegro Full-Face Mask w/ Peel Off Lens Covers
•  (2) North Full-Face Masks w/ Organic Vapor Cartridges w/ Peel-Off Lens Covers
•  (2) North Half-Masks w/ Organic Vapor Cartridges
•  (1) Case of 2XL Spray Suits
•  (12) Pairs of Spray Gloves
•  (1) Box of Latex Gloves
•  (1) Package of Head Socks
•  (1) 15 Minute Wall Mount Eye Wash Station
•  (1) Wall Mount First Aid Kit
•  (1) 5-lb Fire Extinguisher
•  (2) Safety Glasses
