18' Performance Series 2 Compartment PMC PH-2 Diesel Powered Spray Rig

Smart Layout & Dual-Compartment Design

A key advantage of the Performance Series is its organized, contractor-focused layout, often featuring dual-compartment trailers for better separation and efficiency.

Dedicated spaces for equipment and material storage
Cleaner, more organized workflow
Easier maintenance and accessibility
Improved jobsite safety and efficiency

Call Us Now for Pricing

Check out all of the features of our 18' Performance Series 2 Compartment PMC PH-2 Diesel Powered Spray Rig:

Trailer Package

(1) 18’ V-Nose Cargo Trailer, Semi Screwless Exterior, Dual 7,000-lb Dexter Torflex Torsion Axles w/ Electric Brakes (14,000 GVW), 8’ Wide x 7’6” Interior Height, LED Lights, 16” Steel Wheels, 16” Spare Tire, Rear Boggy Wheel
White in Color
Barn Doors in Rear
(1) 7,000-lb Manual Trailer Jack
Insulated Walls and Ceiling (1” Styrofoam)
3/4” Plywood Walls
3/8” Plywood Ceiling
(1) Interior Partition Wall
(1) 36” Side Door w/ Flush and Bar Lock and Easy Access Step Well
Fully Adhered Rubber ATP Diamond Plated Floor
E-Track Barrel Bracing System w/ (2) Heavy-Duty Adjustable Ratchet Straps

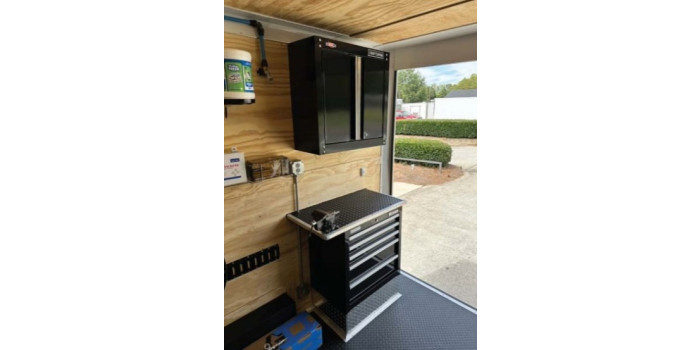

(1) 27” Industrial Grade Tool Box/Work Bench w/ Bench Vise and Tool Package
(1) 28” Industrial Grade Wall Cabinet
(1) 5,000 BTU Infared Electric Wall Heater
(1) 12” x 12” Hose Hatch
(1) Interior Partition Wall w/ 2’0” Heavy-Duty Commercial Grade Steel Door

Equipment Package

(1) PMC PH-2 Horizontal/Electrical Proportioner: 28-lbs/min Output, 2,000 psi Max Working Pressure, 220V Three Phase w/ 7,500-Watt Primary Heaters, 120V Hose Heater Transformer
160’ Heated Spray Hose w/ Scuff Jacket and Temperature Control Wiring
(1) Custom Profoam Hose Hanger
(2) Graco T3 Pneumatic 3:1 Material Transfer Pumps w/ 3/4” Moisture Lock Material Supply Hoses and 1/4” High Pressure Moisture Lock Material Recirculation Hoses
(1) Wall Mount Pour Over and Bleed Off System
(1) Graco FX Spray Gun and Tool Package
(1) Profoam FX Spare Parts Kit

Air Compressor Package

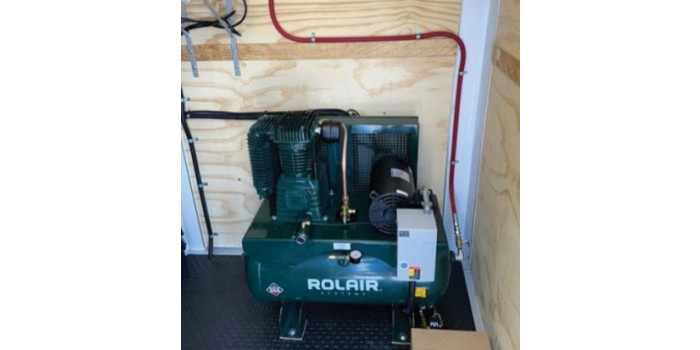

(1) Rolair 5hp Continuous Run Reciprocating Electric Air Compressor, Three Phase Electric Motor, 30 Gallon Tank, 19 CFM, Continuous Run High Efficiency Pump
(1) 25 CFM High Inlet Temperature Refrigerated Air Dryer
Airnet Aluminum Air Line System

Electrical Package

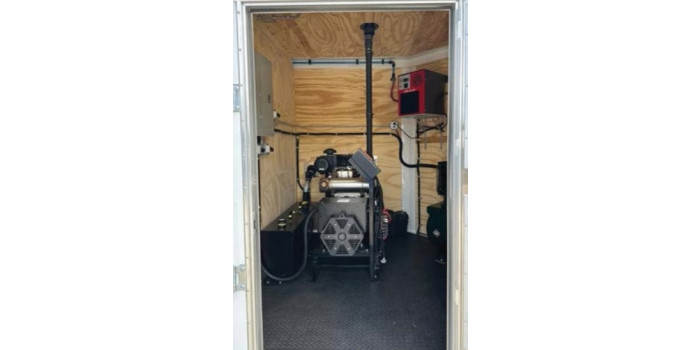

(1) 23kW Three Phase Industrial Diesel Generator w/ Digital Control Panel and Electric Start, Tier 4 Emission
(1) 36 Gallon Fuel Tank, Aluminum Intake and Exhaust Louvers
(1) 150 AMP Three Phase Electrical Panel w/ Miscellaneous Breakers
Industrial Grade Electrical Wiring System
Exterior 110V Shore Power Plugs for Trailer Lights and Wall Heater w/ Multiple 110V Convenience Receptacles
(2) 4’ LED Ceiling Lights
