18' Performance Series PMC PH-2 Front Slider, 19kW Gas Generator Powered Spray Rig

Built for Durability & Daily Use

Performance Series rigs are constructed with heavy-duty materials and reinforced components, ensuring they can handle the demands of everyday use in tough environments.

Strong trailer construction for long-term reliability
Designed for continuous operation
Built to withstand jobsite wear and tear
Professional-grade components throughout

Call Us Now for Pricing

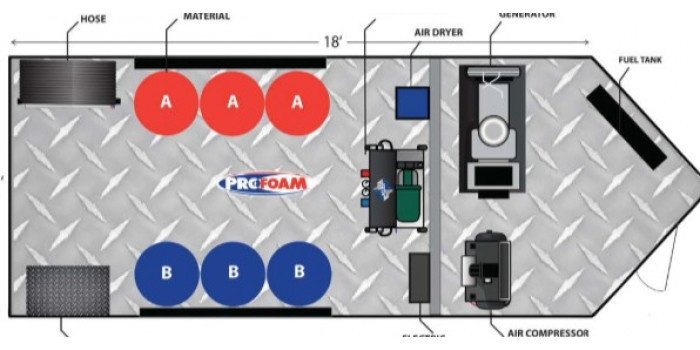

Check out all of the features of our 18' Performance Series PMC PH-2 Front Slider, 19kW Gas Generator Powered Spray Rig:

Trailer Package

(1) Custom Built V-Nose Cargo Trailer: Semi Screwless Exterior, Dual 7,000-lb Dexter Torflex Torsion Axels w/ Electric Brakes (14,000 GVW), 12” OC Floor Supports, 8’ Wide x 7’6” Interior Height, LED Lights, 16” Steel Wheels, 16” Spare Tire - Radial Star Mag, Rear Boggy Wheels
Your Choice of Color
Your Choice of Barn or Ramp Doors in Rear
7,000-lb Manual Trailer Jack
Insulated Walls and Ceiling (1” Styrofoam)
3/4” Plywood Walls
3/8” Plywood Ceiling
(1) Interior Partition Wall
(1) 36” Side Door w/ Flush and Bar Lock and Easy Access Step Well
(2) 36” x 42” Side Access Doors
Fully Adhered Rubber ATP Diamond Plated Floor
E-Track Barrel Bracing System w/ Heavy-Duty Adjustable Ratchet Straps
(1) 27” Husky Industrial Grade Tool Box/Work Bench w/Bench Vise and Tool Package
(1) 28” Husky Industrial Grade Wall Cabinet
(1) 5,000 BTU Infrared Electric Wall Heater
12” x 12” Hose Hatch

Equipment Package

(1) PMC PH-2 Horizontal/Electrical Proportioner: 28-lbs/min Output, 2,000 psi Max Working Pressure, 240V Single Phase w/ 7,500-Watt Primary Heaters, 90V Hose Heater Transformer
160’ Heated Spray Hose w/ Scuff Jacket and Temperature Control Wiring
(1) Custom Profoam Hose Rack System
(2) Graco T3 Pneumatic 3:1 Material Transfer Pumps w/ 3/4” Moisture Lock Material Supply Hoses and 1/4” High Pressure Moisture Lock Material Recirculation Hoses
(1) Wall Mount Pour Over and Bleed Off System
(1) Graco FX Spray Gun and Tool Package
(1) Profoam FX Spare Parts Kit

Air Compressor Package

(1) Gas Powered Industrial Air Compressor, 9 gallon Twin Air Holding Tanks, 13hp Engine w/ Electric Start, 23 CFM @ 125 psi, 3 Cylinder - 2 Stage Continuous Run High Efficiency Pump, Vibration Pads
Air Compressor is Mounted on a 1,000-lb Capacity Cus-tom Built Industrial Slide-Out

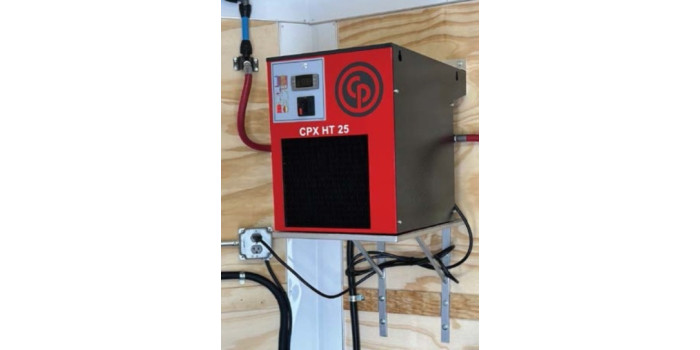

(1) 25 CFM High Inlet Temperature Refrigerated Air Dryer
Airnet Aluminum Air Line System

Electrical Package

(1) 19kW Heavy-Duty Gas Powered Generator, 31hp Briggs Vanguard Engine w/ Electric Start
(1) Extra Large 15 gallon Fuel Tank
Generator is Mounted on a 2,000-lb Capacity Custom Built Industrial Slide-Out
Industrial Grade Electrical Wiring System

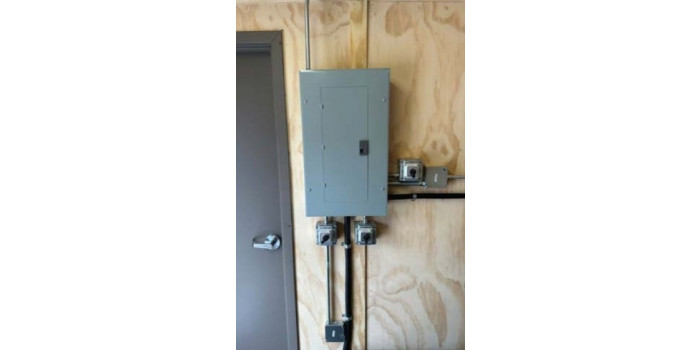

(1) 100 AMP Single Phase Electrical Panel w/ Miscellaneous Breakers
Exterior 110V Shore Power Plugs for Trailer Lights
Multiple 110V Convenience Receptacles Throughout
(2) 4’ LED Ceiling Lights
