16’ Elite Series PMC PH-2, 19kW Gas Generator Powered Spray Rig

Check out all of the features of our 16’ Elite Series PMC PH-2, 19kW Gas Generator Powered Spray:

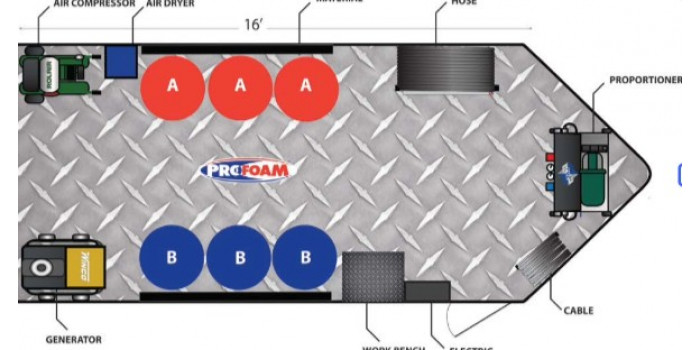

(1) Custom Built 16’ V-Nose Cargo Trailer: Semi Screwless Exterior, Dual 7,000-lb Dexter Torflex Torsion Axles w/ Electric Brakes (14,000 GVW), 12” OC Floor Supports, 8’ Wide x 7’6” Interior Height, LED Lights, 16” Radial Star Aluminum Mag Wheels, w/ 14 Ply Radial Tires, 16” Spare Tire - Radial Star Mag, Rear Boggy Wheels, 24” ATP Rock Guard on All Exterior Surfaces
Your Choice of Color
Ramp Door in Rear
(1) Big Foot 8,000-lb Electric/Hydraulic Trailer Jack
1.75” Profoam Closed Cell Insulation in Walls, Ceiling, and Floor
3/4” Cabinet Grade Plywood Walls
3/8” AC Grade Plywood Ceiling
Industrial Gray Wall and Ceiling Paint
Aluminum Door Trim
(1) 36” Side Door w/ Flush and Bar Lock and Easy Access Step Well
Fully Adhered Rubber ATP Diamond Plated Floor
E-Track Barrel Bracing System w/ (2) Heavy-Duty Adjustable Ratchet Straps
(1) 27” Industrial Grade Tool Box/Work Bench w/ Bench Vise and Tool Package
(1) 28” Industrial Grade Wall Cabinet
(1) 5,000 BTU Infrared Electric Wall Heater
(1) 12”x12” Hose Hatch

(1) PMC PH-2 Horizontal/Electrical Proportioner: 28-lbs/min Output, 2,000 psi Max Working Pressure, 240V Single Phase w/ 7,500-Watt Primary Heaters, 120V Hose Heater Transformer
210’ Heated Spray Hose w/ Scuff Jacket and Temperature Control Wiring

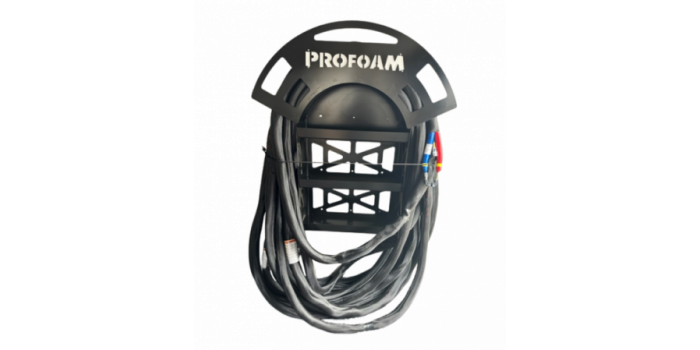

(1) Custom Profoam Hose Rack System
(2) Graco T3 Pneumatic 3:1 Material Transfer Pumps w/ 3/4” Moisture Lock Material Supply Hoses and 1/4” High Pressure Moisture Lock Material Recirculation Hoses
(1) Wall Mount Pour Over and Bleed Off System
(1) Graco FX Spray Gun and Tool Package
(1) Profoam FX Spare Parts Kit

(1) Rolair Gas Powered Bell Drive Air Compressor, 9 gallon Twin Air Holding Tanks, 23 CFM @ 125 psi, 270cc, 9hp Honda 4 Cycle Engine and Heavy-Duty Two Stage Cast Iron Twin Cylinder Pump
(1) 25 CFM High Inlet Temperature Refrigerated Air Dryer
Aimet Aluminum Air Line System

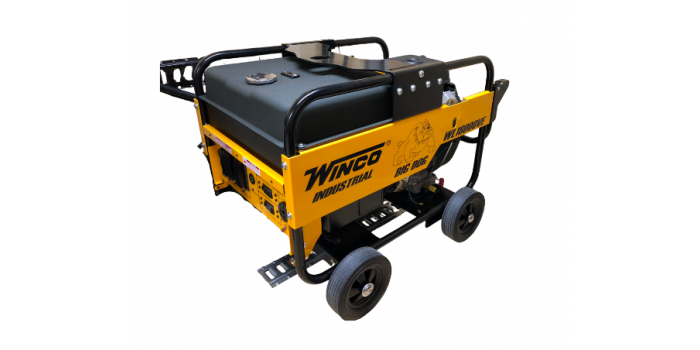

(1) 19kW Heavy Duty Gas Powered, Extra Large 15 gallon Fuel Tank, Electric Start, Heavy-Duty Rubber Wheels
Industrial Grade Electrical Wiring System
(1) 100 AMP Single Phase Electrical Panel w/ Miscellaneous Breakers
50' #6/4 SO Power Cable w/ 60 AMP Breaker
Exterior 110V Shore Power Plugs for Trailer Lights
Multiple 110V Convenience Receptacles
(2) 4’ LED Ceiling Lights
