Check out all of the features of our 16’ Core Series PMC PH-2, 19kW Gas Generator Powered Spray:
Trailer Package

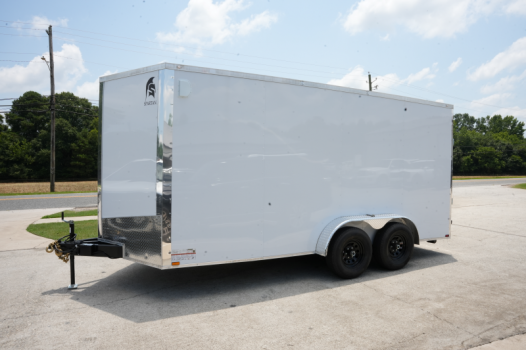

(1) 16’ V-Nose Cargo Trailer: Semi Screwless Exterior, Dual 5,200-lb Spring Axles w/ Electric Brakes (10,400 GVW), 16” Steel Wheels w/ 14 Ply Radial Tires, Full Size Spare, Rear 16” Boggy Wheels, 7’ Wide x 7’6” Interior Height, LED Lights
Your Choice of Color
Ramp Door in Rear
(1) 3,500-lb Trailer Jack
(1) 36” Side Door w/ Flush and Bar Lock and Easy Access Step Well
E-Track Barrel Bracing System w/ (4) Heavy-Duty Adjustable Ratchet Straps
Fully Adheared Rubber ATP Diamond Plated Flooring
3/4” Plywood Walls

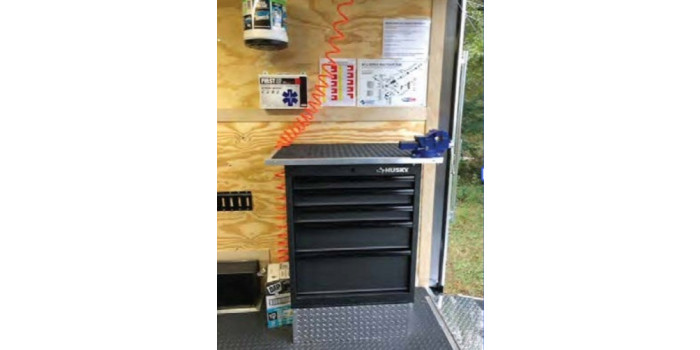

(1) 27” Industrial Grade Tool Box/Work Bench w/ Job Site Tool Package and Bench Vise
(1) 12”x12” Hose Hatch
(1) 5,000 BTU Infrared Electric Wall Heater
Equipment Package

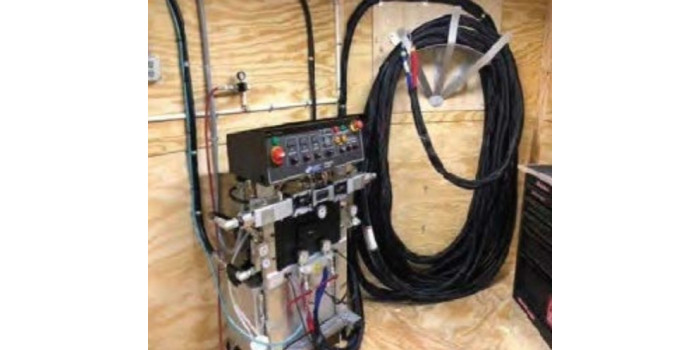

(1) PMC PH-2 Horizontal/Electrical Proportioner: 28-lbs/min output, 2,000 psi Max Working Pressure, 240V Single Phase w/ 7,500-Watt Primary Heaters, 90V Hose Heater Transformer
160’ Heated Spray Hose w/ Scuff Jacket and Temperature Control Wiring

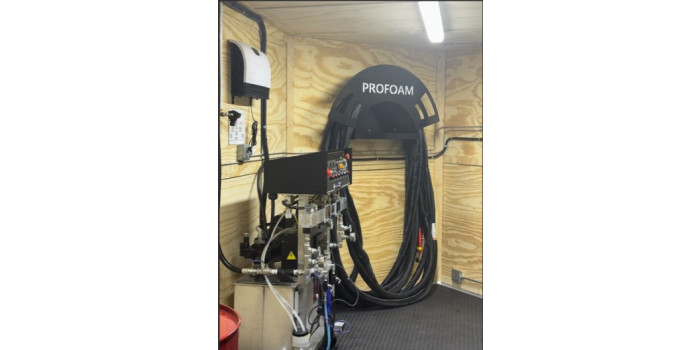

(1) Custom Profoam Hose Rack System
(2) Graco T3 Pneumatic 3:1 Material Transfer Pumps w/ 3/4” Moisture Lock Material Supply Hoses and 1/4” High Pressure Moisture Lock Material Recirculation Hoses
(1) Wall Mount Pour Over and Bleed Off System
(1) Graco FX Spray Gun and Tool Package
(1) Profoam FX Spare Parts Kit
Air Compressor Package

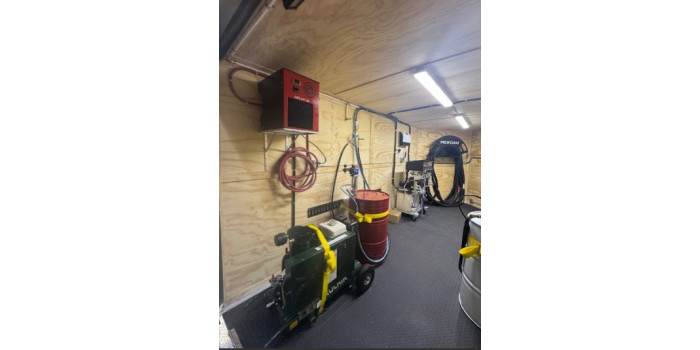

(1) Rolair Gas Powered Bell Drive Air Compressor, 9 gallon Twin Air Holding Tanks, 23 CFM @ 125 psi, 270cc, 9hp Honda 4 Cycle Engine and Heavy-Duty Two Stage Cast Iron Twin Cylinder Pump
(1) 25 CFM High Inlet Temperature Refrigerated Air Dryer
Aimet Aluminum Air Line System
Electrical Package
(1) 19kW Heavy-Duty Gas Powered Generator, Extra Large 15 gallon Fuel Tank, Electric Start, Heavy Duty Rubber Wheels
(1) 100 AMP Single Phase Electrical Panel w/ Miscellaneous Breakers
Industrial Grade Electrical Wiring System
50’ #6/4 SO Power Cable w/ 60 AMP Breaker
Exterior 110V Shore Power Plugs for Trailer Lights
Multiple 110V Convenience Receptacles Throughout
(2) 4’ LED Ceiling Lights
Safety Package
(1) Allegro 9815-EF 1-Man Fresh Air Respirator System
150’ 3/4” Air Hose
(1) Allegro Full-Face Mask w/ Peel Off Lens Covers
